Product Introduction

AVERNA

AST-1000

AST-1000 AVERNA
SIGNAL TE+STER FOR
INFOTAINMENT

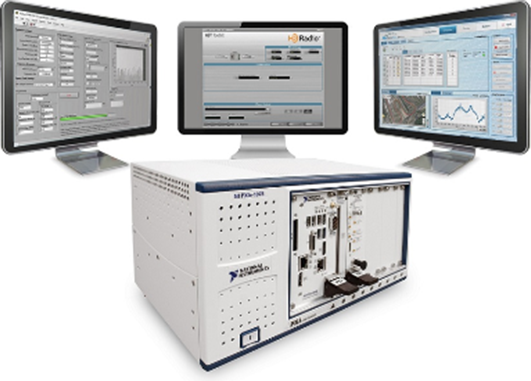

AST-1000 AVERNA SIGNAL TE+STER FOR INFOTAINMENT

AST-1000 AVERNA SIGNAL TE+STER FOR INFOTAINMENT is an all-in-one solution tailored for the validation of automotive infotainment systems. Leveraging Averna's leading RF and test expertise, AST-1000 is powered by NI VST and LabVIEW, allowing it to generate all common wireless signals, including AM/FM, DAB, DRM, HD Radio, and Sirius/XM.

It is capable of simulating digital video signals, including ATSC, CMMB, DVB-T2, and ISDB, as well as simulating all common GNSS signals, including BeiDou, Galileo, GLONASS, GPS, and QZSS.

Key Features and
Benefits

  • Supports all common broadcast radio, digital video, and navigation protocols.
  • Multi-Constellation and Multi-Frequency GNSS simulator powered by the M3 system.
  • FPGA framework easily accommodates new signals, reducing equipment costs.
  • Interface for fast signal generation and easy test configuration.
  • Flexible architecture of PXIe allows integration with different applications/cards.
  • Rackmountable type for rack integration, suitable for lab validation, functionality testing, and EOL testing.
  • Standardized platform, easy calibration, straightforward maintenance, and global support.
  • Standardized API for seamless upgrades from legacy Averna RF signal source products.

RP-6100

RP-6100 MULTI-
CHANNEL RF RECORD &
PLAYBACK

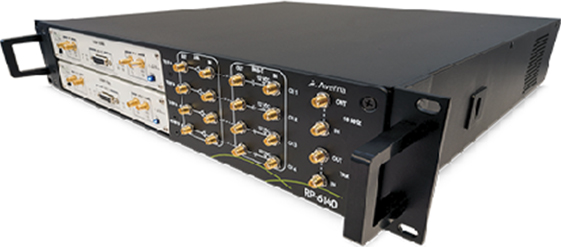

RP-6100 MULTI-CHANNEL RF RECORD & PLAYBACK

The RP-6100 series from Averna sets a new standard for RF application testing. By recording signals such as GNSS, HD Radio, LTE, and WiFi, it significantly reduces project execution time.

With a maximum of 4 channels and a recorder bandwidth of 160MHz, a frequency range of 10-6000MHz, channel synchronization, and storage capacity of up to 16TB, this product is one of the most powerful and efficient R&P solutions in the market.

Key Features and
Benefits

  • Frequency range from 10-6000 MHz, covering all GNSS bands (L1, L2, and L5)
  • Multi-channel (1-4): Provides up to 4x40 MHz or 2x80 MHz bandwidth with 14-bit resolution (less than 1Hz)
  • Easy-to-use analysis tools: Noise index, spectrum, power, and histogram
  • 3.8TB SSD storage or 16TB HDD storage (allows recording for up to 20 hours)
  • Supports ATSC, Bluetooth, DAB, DVB-T, FM, GNSS, HD Radio (FM), IBOC, RDS/TMC, WiFi, etc.
  • Models include RP-6120 (2 channels), RP-6120P (2 channels portable), RP-6120D (2 channels desktop),
    and RP-6140 (4 channels)
  • Portable: Can be run on a laptop with a rugged case, supports 12V or battery (up to 40 minutes). DriveView option available.
